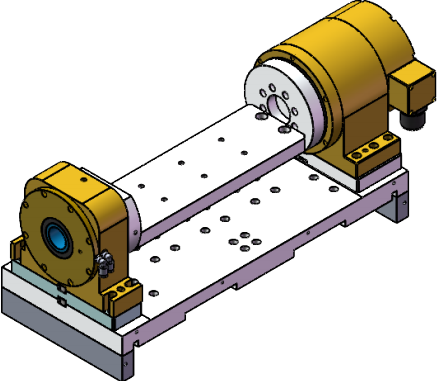

High Precision Hollow DD Rotary Table Pneumatic Brake Type for Machine Tool ZRTZDZ-300-H80-A60-300-DMC7-01

1. Improved Efficiency
With a top speed of 3000rpm, this rotating platform provides quick and effective performance, outperforming traditional rotary tables.

2. Precision Accuracy
Featuring a precise encoder, this rotating platform offers exceptional accuracy, with positioning accuracy of ±3″ and repetitive positioning accuracy of ±1″.

3. Powerful Grip

4. Consistent Performance
After significant structural enhancements and thorough testing, this rotating platform ensures reliability, backed by a satisfied customer base of over 10,000.

5. Structural Enhancements and Testing
Following extensive testing and input from more than 1000 customers, this rotating platform ensures machine stability.

6. Personalization Options Available

Factory

Certification

Workpiece Production

Stator Production

R&D Design

Team

IQC

Measure of Precision

Whole Machine Parameter Inspection(QA)

Laser Interferometer Inspection

Packaging

1: Broad torque range of 5 to 1500 N-m, commonly utilized
2: Capable of reaching speeds up to 6000 RPM for various high-torque, low-speed tasks
3: Power output of up to 3000W to cater to most requirements
4: Optional precise sinusoidal encoder feedback mechanism ensures accuracy and repeatability within 2 arcsec
5: Direct load connection eliminates the need for gearbox, belt, or pulley maintenance
6: Absence of back backlash and enhanced load flexibility for improved system performance
7: Single and double bearing designs minimize static friction
8: Dustproof and water-resistant operation with IP65 and IP67 protection ratings
9: CE and ROHS certified
10: Includes built-in temperature controller for protection against overheating
11: Reduction in machine size and elimination of coupling components

Q: Do you offer Direct Drive Rotary table motors custom service?

A: Yes, We can provide Torque motor customized service until the customization is satisfactory.

successfully provide customized cases for lots of china domestic equipment listed companies

Q: Do you have matching drives available?

A: Yes, we can offer the ChinaBrand Available or according to your driver brand to design Direct Drive Rotary table motors.

Q: How can i pay my order?

A: We accept T/T.

Q: Do you have any certificate?

A: We have passed ISO9001, audited by SGC, obtained CE/ROHS Certification and 3A Credit certification of China.

Q: How about your warranty?

A: Our Warranty is 24months, Normally, the general after-sale service may be as below:

1. The technical support is permanent;

2. The paid spares parts could be provided at any time.

Q: How long is your delivery time?

Q: How do you package?

A: Each motor will be packed with high quality carton box.
If needed,the motors can also packed with plywood case

Port: Guangzhou/Shenzhen port

We offer the best If you are satisfied with our company's Direct Drive Rotary table motors , you can send e-mail or consult the direct driver motor related issues. We will provide you with the best torque motor rotary table products and services. We are very happy to cooperate with you and bring you satisfactory products.
